Fully-automatic

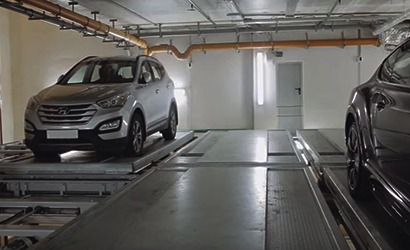

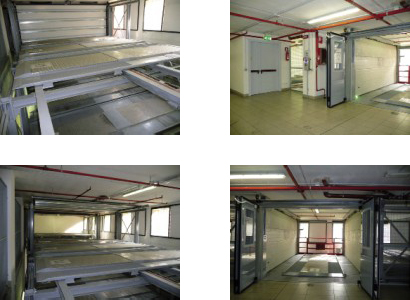

Tecnopark is an automated parking system that offers high intensity vehicle storage, making the most of differently shaped areas such as courtyards, obsolete garages or basements located in city centres.

This electro-hydraulic system uses hydraulics for vertical movement of the lift and electricity to for all horizontal movement of the parking platforms.

The vehicle is moved using metal platforms supported by plastic wheels that reduce noise and structural vibrations to the barest minimum.

This system allows you to choose the type of vertical lift – column (SPACER) or pantograph (REX) – and thus can be used in a wide range of situations. Where possible, installation of a turntable makes it possible to orient the vehicle so that it can easily be driven into and out of the parking space.

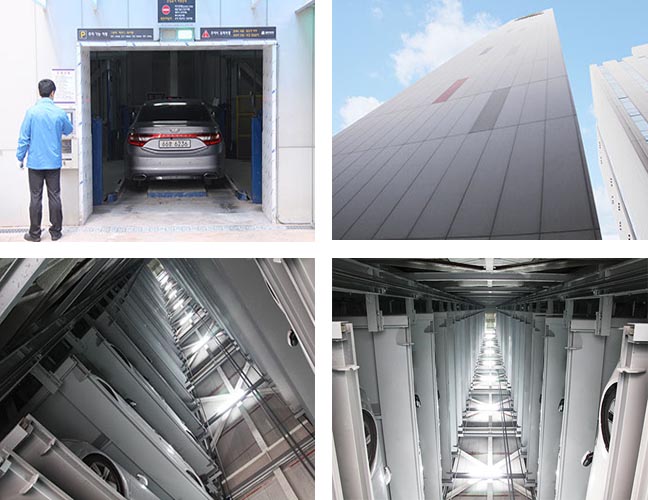

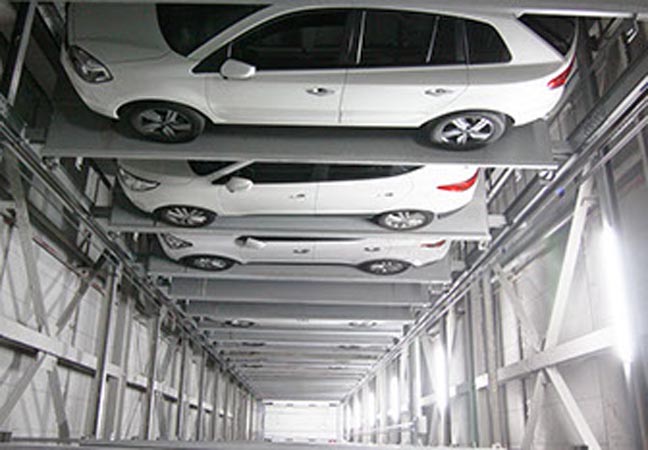

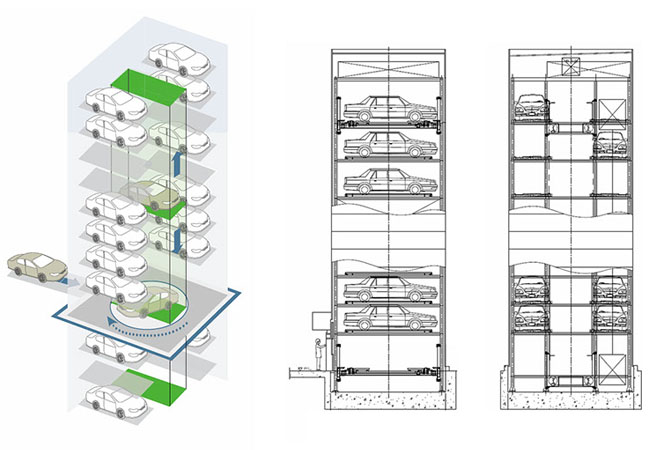

TP type is the latest mechanical multi-level parking system to be able to park much more cars promptly and safely in the limited space. It is possible to perform the parking and retrieving process for a sedan and a SUV at the same time as well as drive forward in parking and retrieving process due to the inner turn-table (T/T) and vibration and noise for the building is less.

• Due to the less operation noise and vibration, it is suitable for a hospital, mid. & big scale building and for residence building.
• It has high space efficiency because it is possible to arrange the various forms depending on the building design.
• It is enable to manage the system with minimized personnel due to the integrated management type by the computer monitoring system and touch screen.
• It is ensured safety by the steel structure design made allowance of the local wind velocity and seismic conditions.

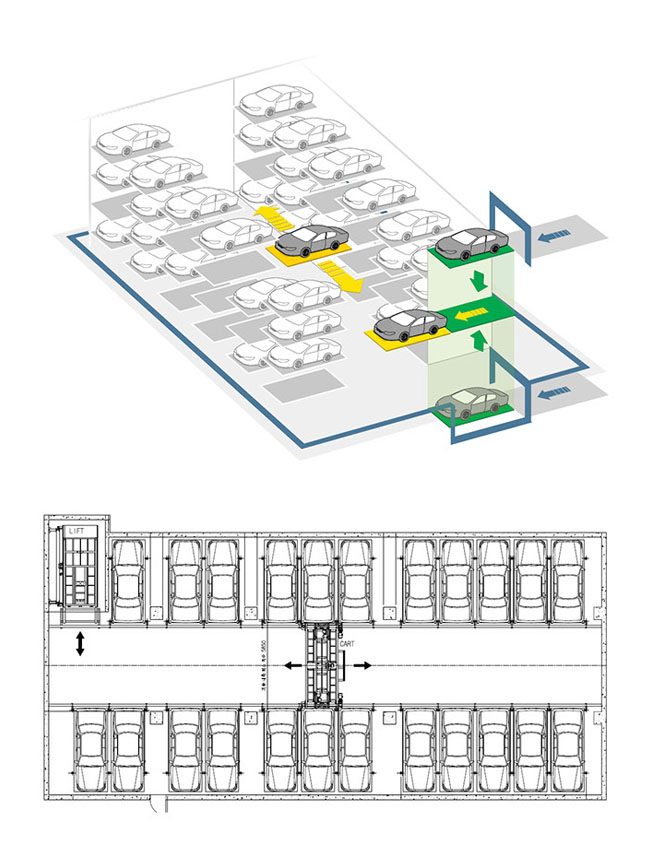

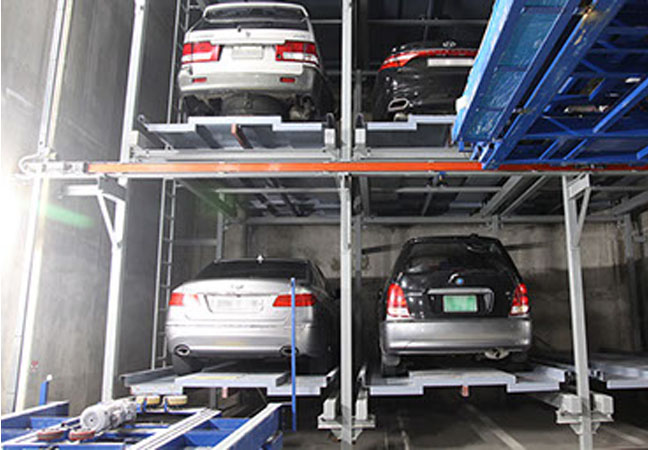

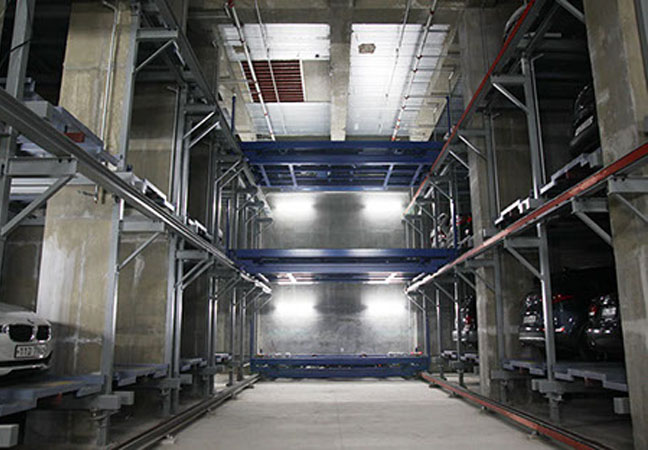

GP type is that 1 or more lift(s) which share numerous storage tiers and cart(s) each tier which forward the loaded car between the lift and the storage are enable to operate at the same time for parking and retrieving process therefore it is faster parking and retrieving time than other type. This type is too suitable for big scale basement parking space where it is regular width and numerous floors.

• It is possible to perform the prompt parking and retrieving process by the separated operation of the lift and the cart.
• It is enable to use the basement space freely and also it is available for thousands cars.
• Regarding a part of malfunction, the other part is not affected so while system is no stop.
• It is enable to manage the system with minimized personnel due to the integrated management type by the computer monitoring system and touch screen.
• It is ensured the excellent safely by the double & triple safety devices.

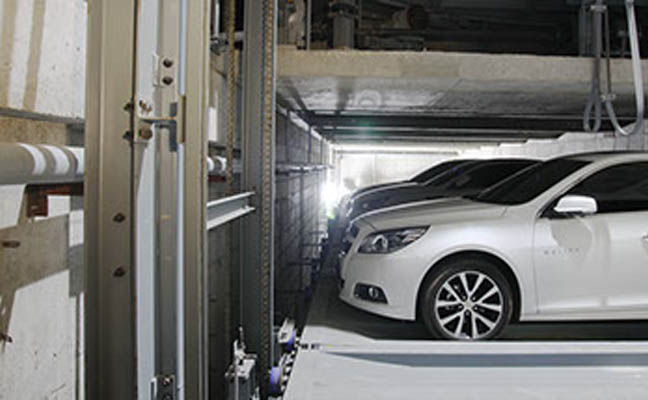

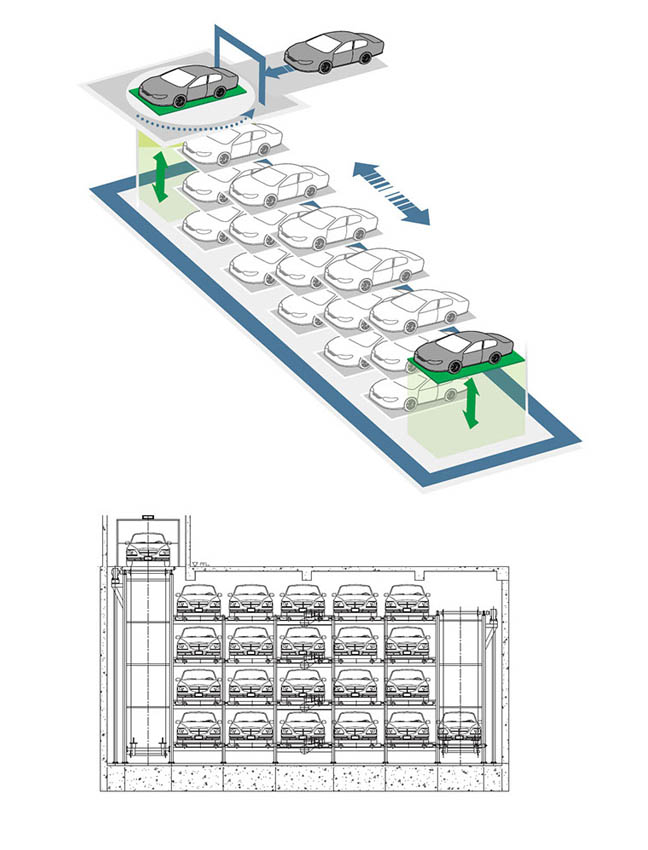

CP type is a circulation type that pallets of same tier are gone in gear for horizontal movement of the tier but the pallets are separated for lifting of a pallet. This type is the most excellent using efficiency for underground space among the mechanical parking systems.

• It is possible to be used to the limited parking space more efficiently.
• It is suitable for small scale building due to the excellent space efficiency.
• The structure is simpler than others therefore the installation cost is cheaper.
• It is enable to manage the system with minimized personnel due to the integrated management type by the computer monitoring system and touch screen.
• Control is simple and the management cost is cheaper.
